STRATOCASTER DIAGRAMS

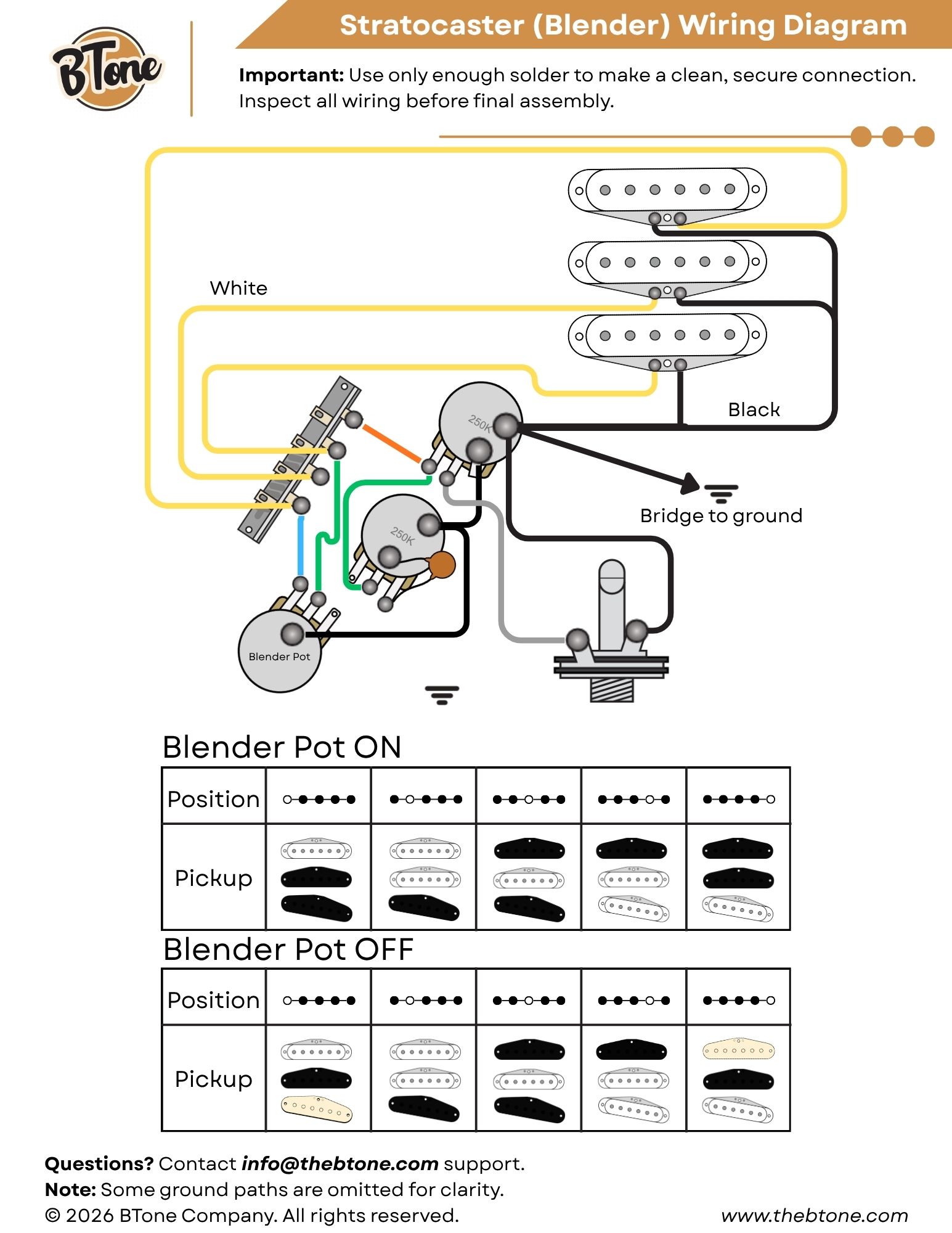

Stratocaster Wiring Diagram

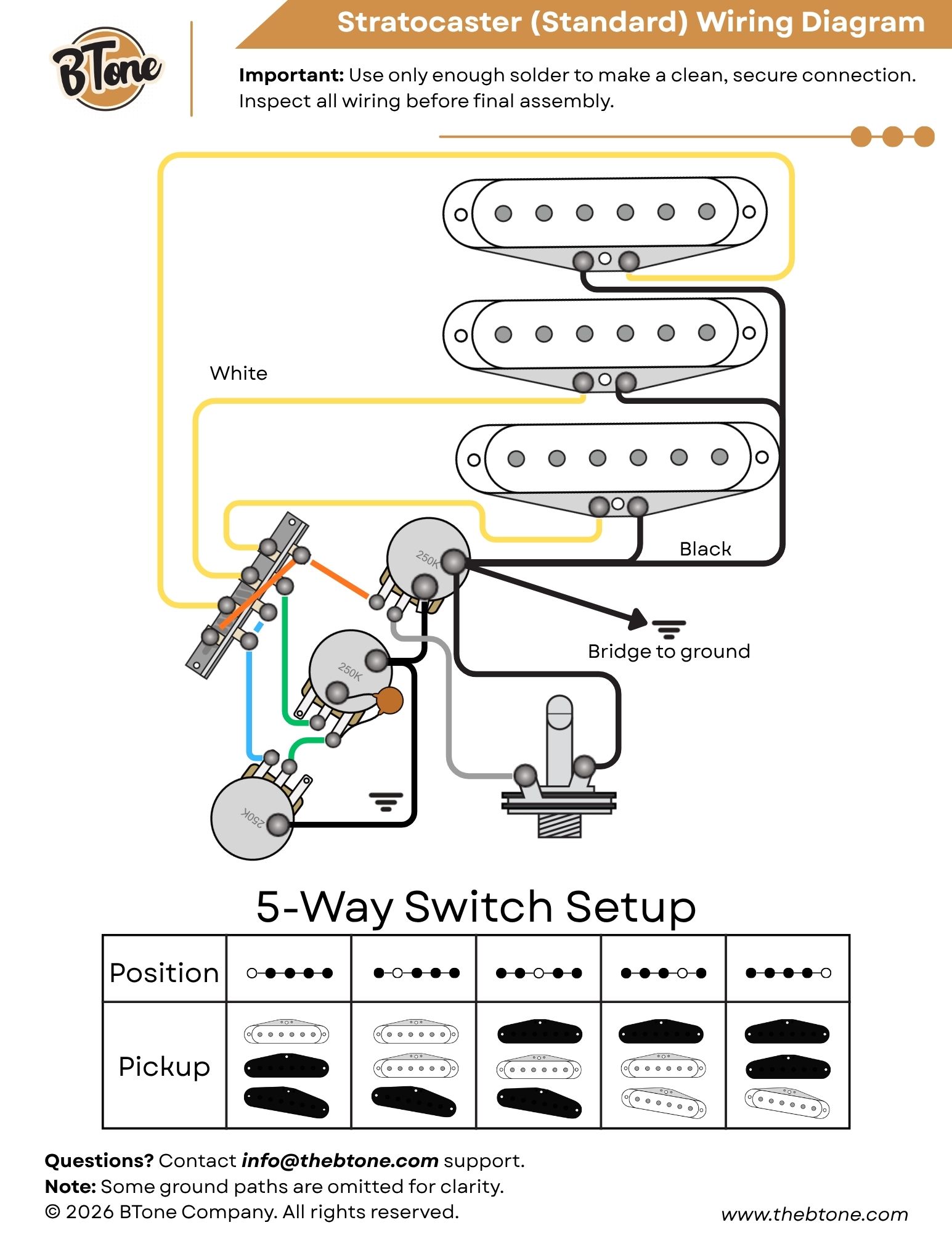

Stratocaster Wiring Diagram

TELECASTER DIAGRAMS

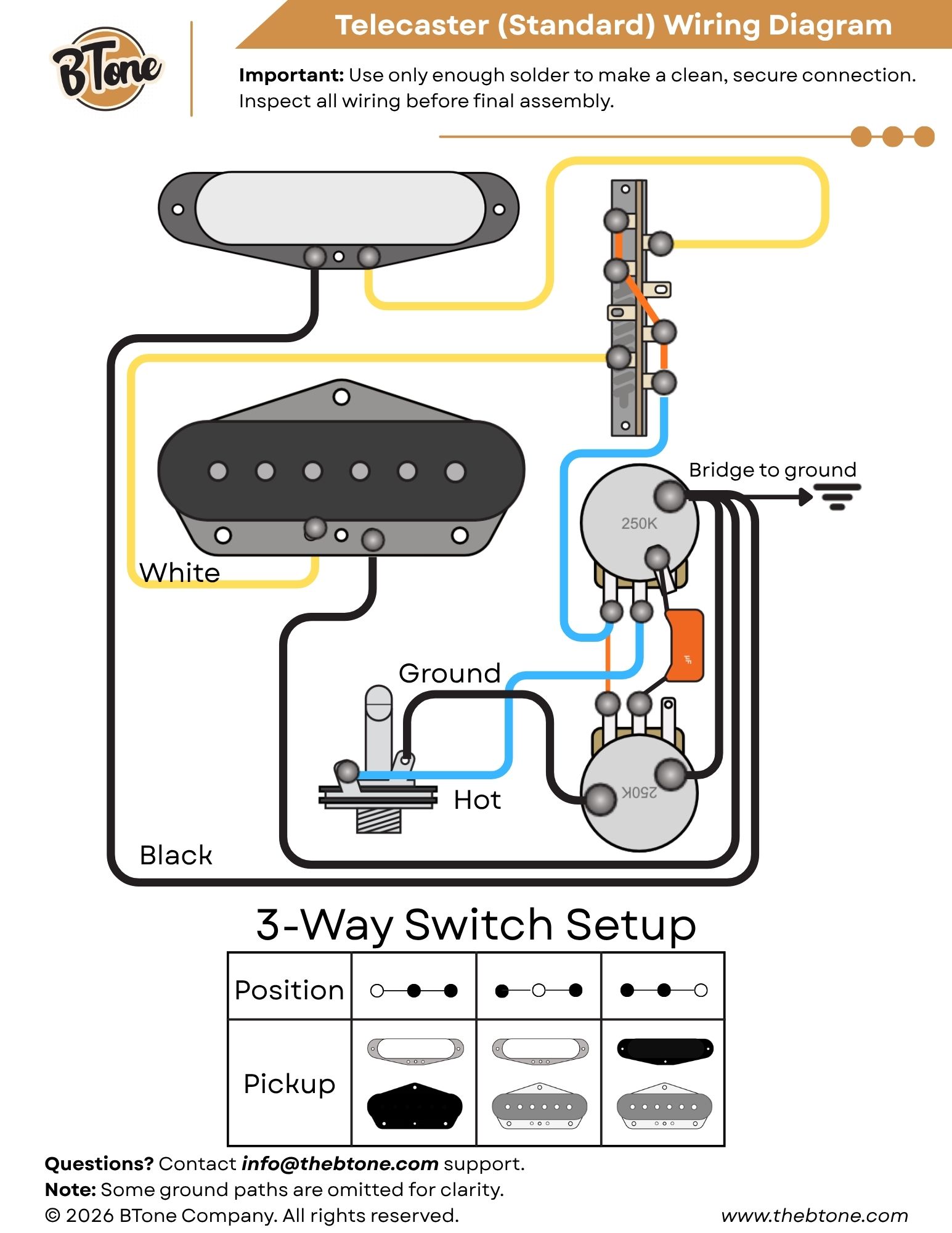

Telecaster Wiring Diagram

HUMBUCKER DIAGRAMS

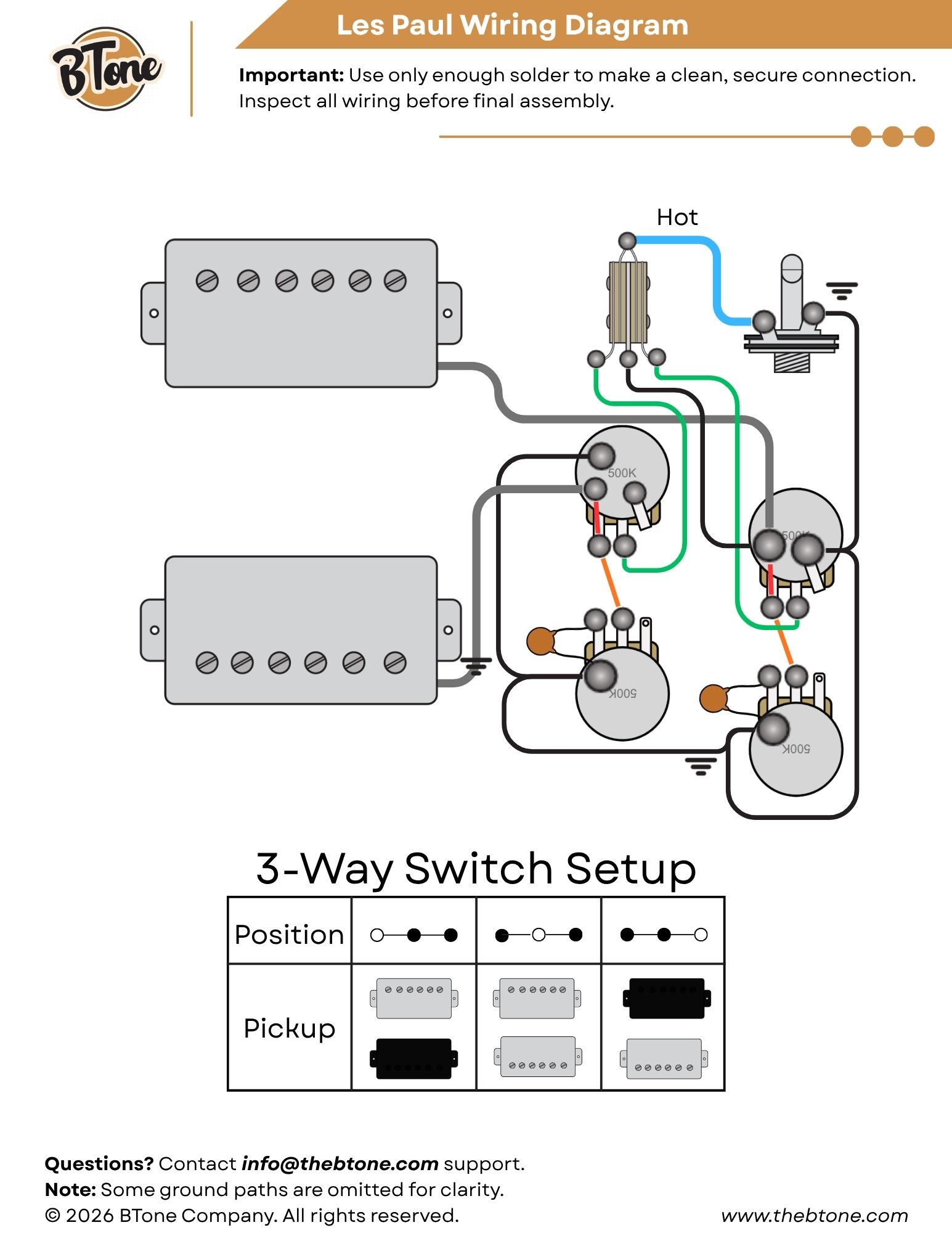

Humbucker Guitar Pickup Diagrams

P90 DIAGRAMS

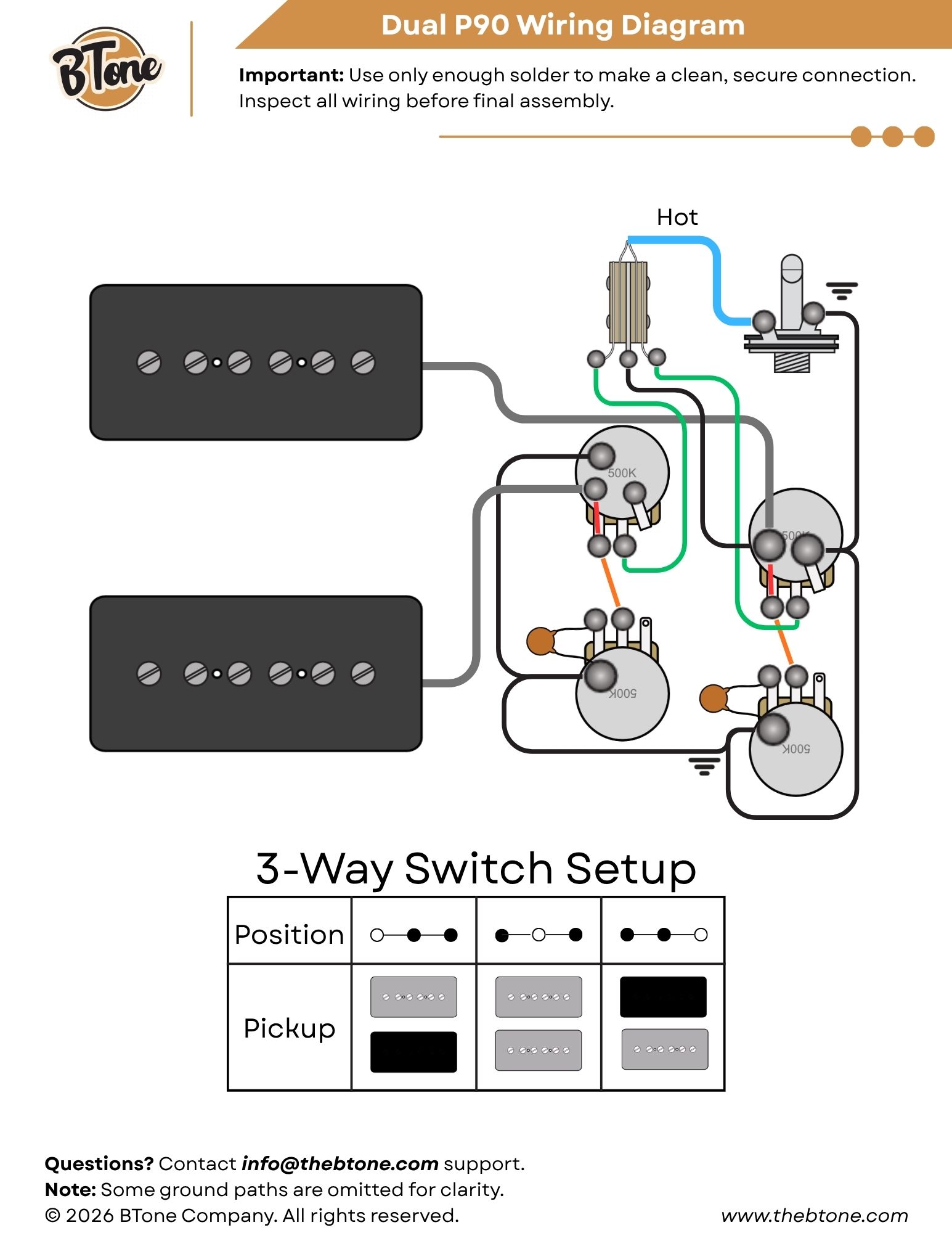

P90 Wiring Diagram

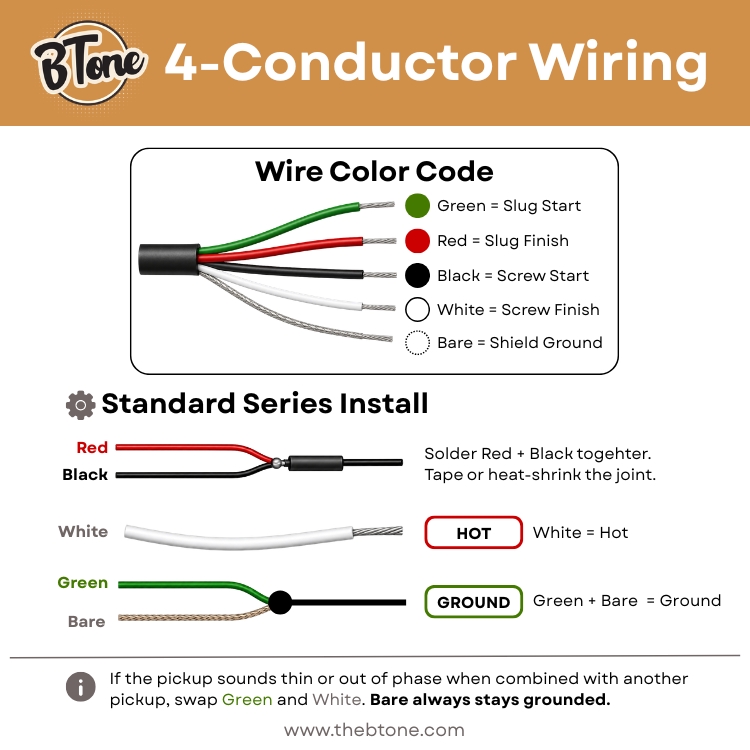

4-Conductor-Wiring-Diagram
