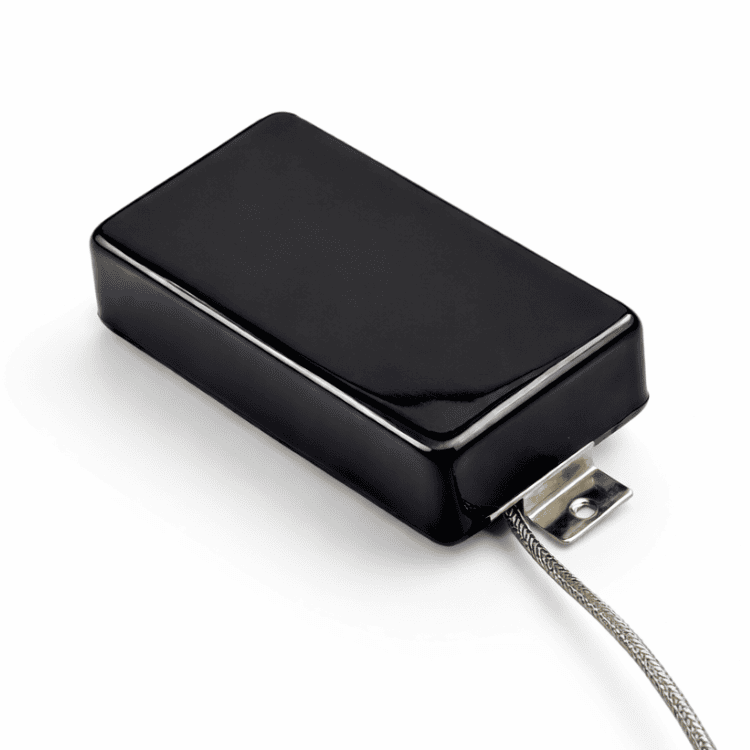

B43H Juiced
USD 150.00 USD 300.00Price range: USD 150.00 through USD 300.00
The B43H Juiced delivers a full, powerful neck tone and a hotter, more aggressive bridge with tight lows, strong mids, and clear attack. A punchier humbucker set built to push harder without losing the clarity and response of the BTone® sound.
- Description
- Demo Videos
- Live Videos
- Tech Specs
- Reviews
- Dimensions
- Wiring Diagrams
- 4-Conductor Wiring
- The Story
- Additional information
B43H Juiced — Hotter, Punchier, and More Aggressive
The B43H Juiced is a calibrated humbucker set designed for players who want more output, stronger mids, and a harder push into the front end of an amp without sacrificing clarity or dynamic response.
Wound with 43 AWG plain-enamel wire and powered by Alnico V magnets, the Juiced set delivers a thicker, more assertive humbucker voice with tight lows, focused mids, and enough top-end clarity to keep chords and lead lines defined.
Classic humbucker character with more output, more midrange push, and a tighter attack.
Neck
≈ 10.1 kΩ
Full, strong, and clear under gain.
- Full low end with controlled definition
- Strong, vocal midrange
- Smooth highs without losing articulation
Ideal for thick lead tones, driven blues and rock, and players who want a stronger neck pickup without excessive muddiness.
Bridge
≈ 11.8 kΩ
The hotter and more aggressive side of the set.
- Tight, punchy low end
- Forward midrange with strong attack
- Clear highs that stay defined under gain
Built for driving an amp harder, adding authority to rhythm parts, and delivering thick lead tones without becoming overly compressed.
Who It’s For
✓ Players who want more output and midrange push than a traditional P.A.F.-style humbucker
✓ Great for blues, classic rock, hard rock, alternative, punk, and heavier styles
✓ Players who want to push an amp harder while keeping clarity and dynamics
✕ Not ideal for players seeking ultra-low-output vintage humbucker response
Key Benefits
- Hotter output with strong dynamic response
- Focused mids and tight low-end punch
- Clear note separation under gain
- Lightly offset coils for added harmonic complexity
- Calibrated neck and hotter bridge for natural output balance
- More amp push without extreme high-output compression
Construction
Hand-wound in Canada with Alnico V bar magnets, 43 AWG plain-enamel wire, and lightly offset coils. Nitro dipped and wax-potted for stability, consistency, and feedback control.
Configuration
Neck Pickup
Approx. DCR: 10.1 kΩ
Slug Coil: North Up • CCW
Screw Coil: South Up • CW
Bridge Pickup
Approx. DCR: 11.8 kΩ
Slug Coil: North Up • CCW
Screw Coil: South Up • CW
Wire: 43 AWG Plain Enamel
Magnets: Alnico V
Recommended Pots: 500 kΩ
Tone Cap: 0.022 µF
Includes: Neck and Bridge humbuckers, sold individually or as a calibrated set
Demo Videos
Coming Soon…
Live Videos
Coming Soon…
Tech Specs
“`html
| SPEC (B43H Juiced) | VALUE |
|---|---|
| Neck Ohm Reading: | ≈ 10.1 kΩ |
| Bridge Ohm Reading: | ≈ 11.8 kΩ |
| Polarity / Wind (Neck): | Slug Coil – North Up / Counter-Clockwise Screw Coil – South Up / Clockwise |
| Polarity / Wind (Bridge): | Slug Coil – North Up / Counter-Clockwise Screw Coil – South Up / Clockwise |
| Magnet Type: | Alnico V Bar |
| Wire Type: | 43 AWG Plain-Enamel |
| Pot Value (Recommended): | 500 kΩ Volume / Tone |
| Tone Cap Value: | 0.022 µF (Standard Humbucker Roll-Off) |
Additional Technical Info
1. Ohm readings may vary slightly due to temperature, multimeter calibration, and material variances.
2. Tone caps for humbuckers typically range from 0.022 µF to 0.015 µF. Larger values roll off more highs; smaller values retain more top-end clarity.
3. Recommendation: 0.022 µF for a balanced, clear humbucker response.
4. Wax potted for stability and feedback resistance.
Reviews
Dimensions
Wiring Diagrams
4-Conductor Wiring
The Story
Built From the Same Roots. Pushed Further.
The B43H Juiced takes the BTone® humbucker voice in a hotter, more aggressive direction.
The foundation still comes from the same philosophy that shaped BTone from the beginning — clarity, balance, response, and touch. But the B43H Juiced is built for players who want more push, more midrange presence, and more authority from a humbucker without losing definition.
Using 43 AWG plain-enamel wire, Alnico V magnets, and calibrated neck and bridge winds, the Juiced set delivers a stronger, tighter response while keeping chords clear and lead lines expressive.
It is not about chasing output for the sake of output. It is about adding more drive, more punch, and more energy while keeping the pickup musical.
Same attention to feel. Same focus on balance.
More output. More attitude.
Built by hand. Played with purpose.
The B43H Juiced is the BTone® humbucker voice turned up.
| Weight | .35 kg |
|---|---|
| Dimensions | 13 × 13 × 8 cm |
| Pickups | Set of 2 (Neck & Bridge), Neck Pickup Only, Bridge Pickup Only |
| Spacing | 50mm, 52mm, (50mm Neck, 52mm Bridge), (50mm Neck, 50mm Bridge) |
| Lead Type | Braided Shield, 4-Conductor Shielded |

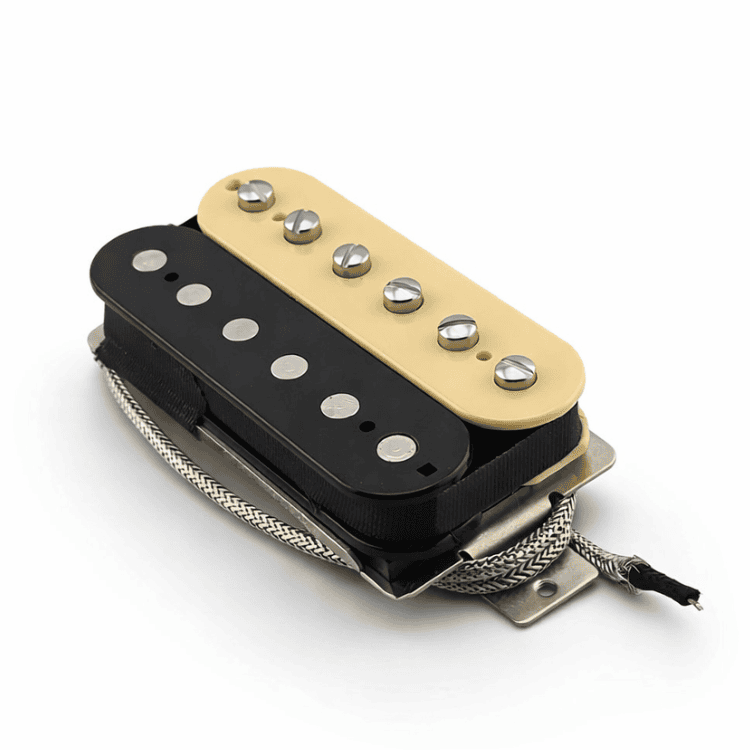

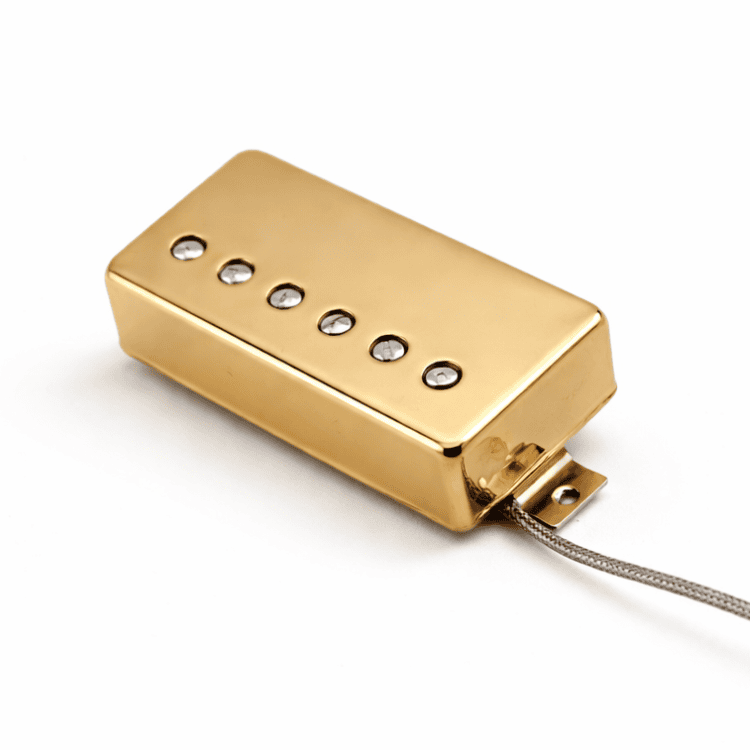

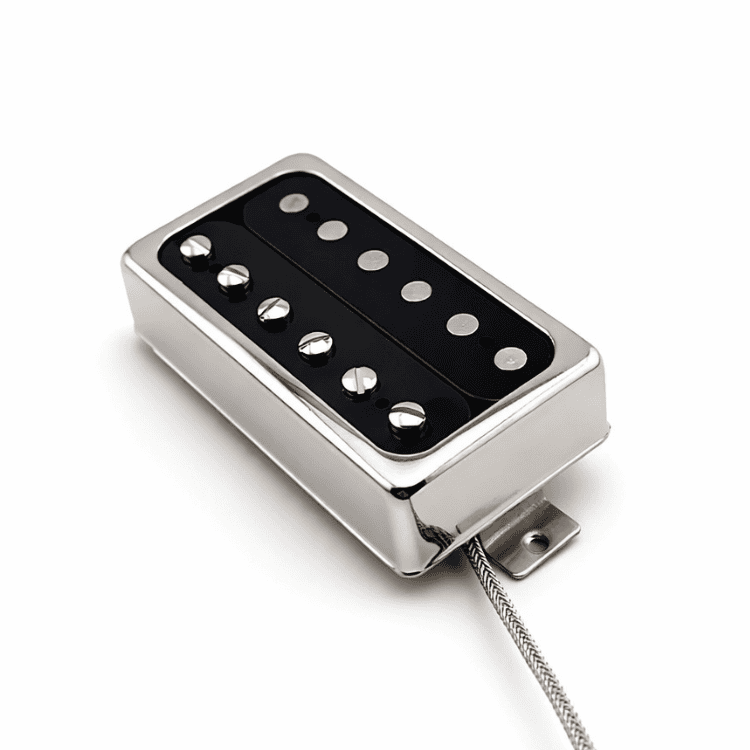

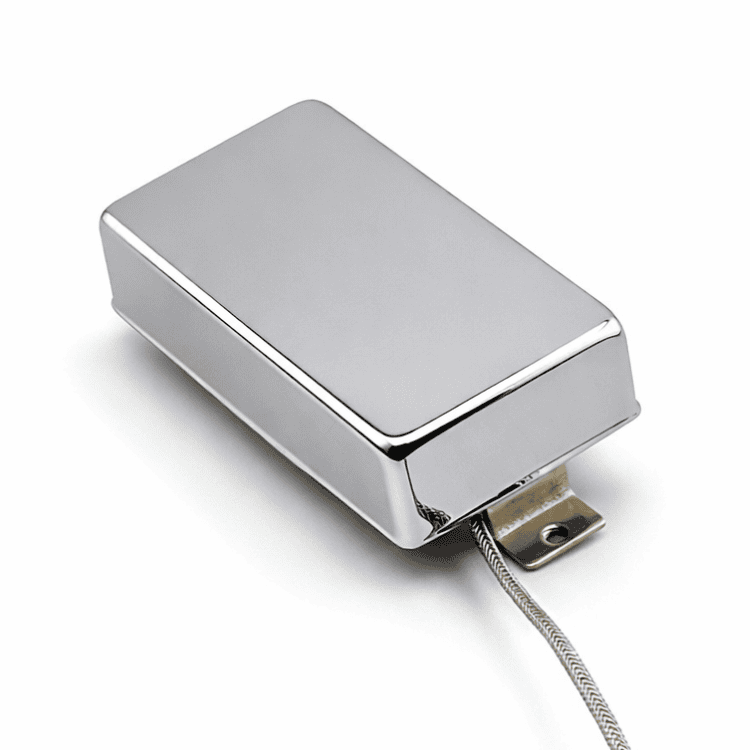

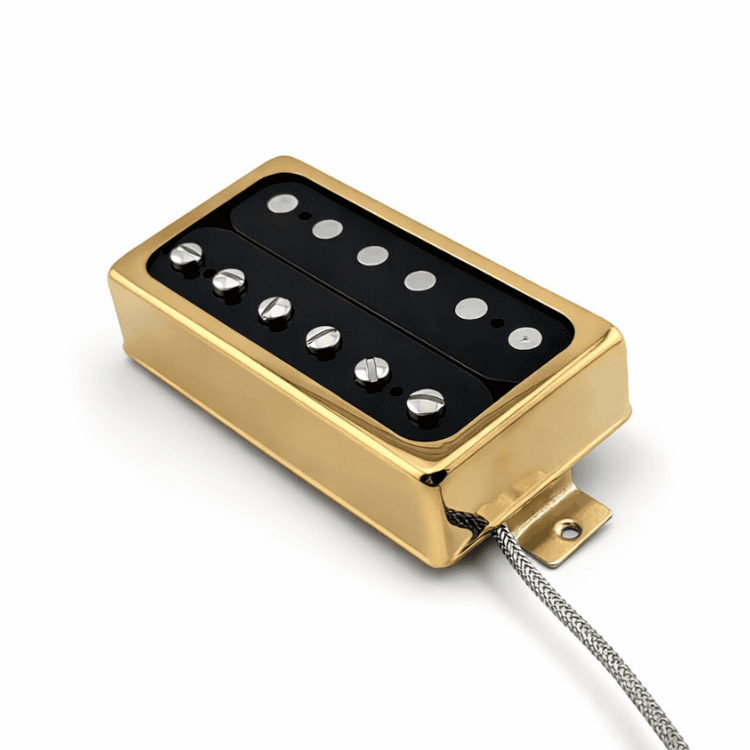

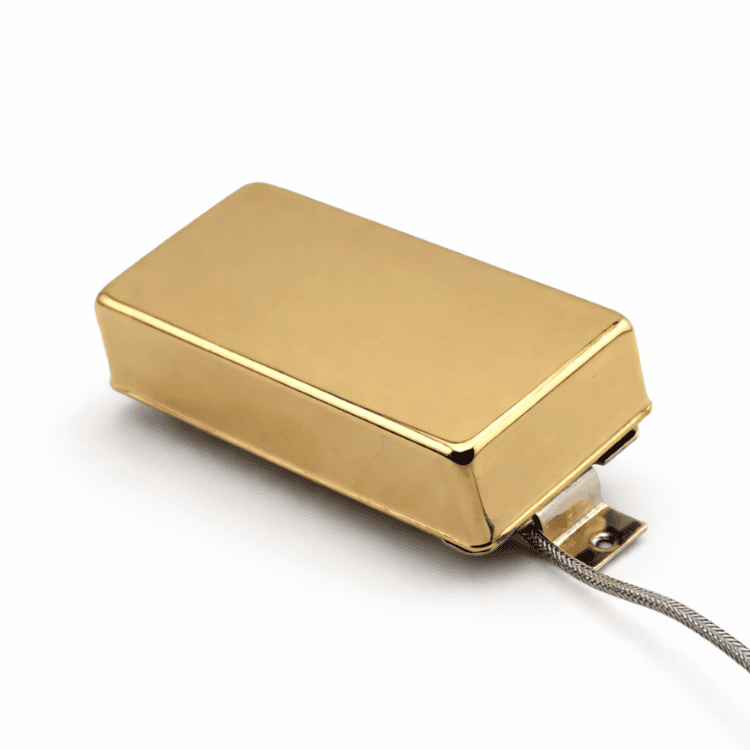

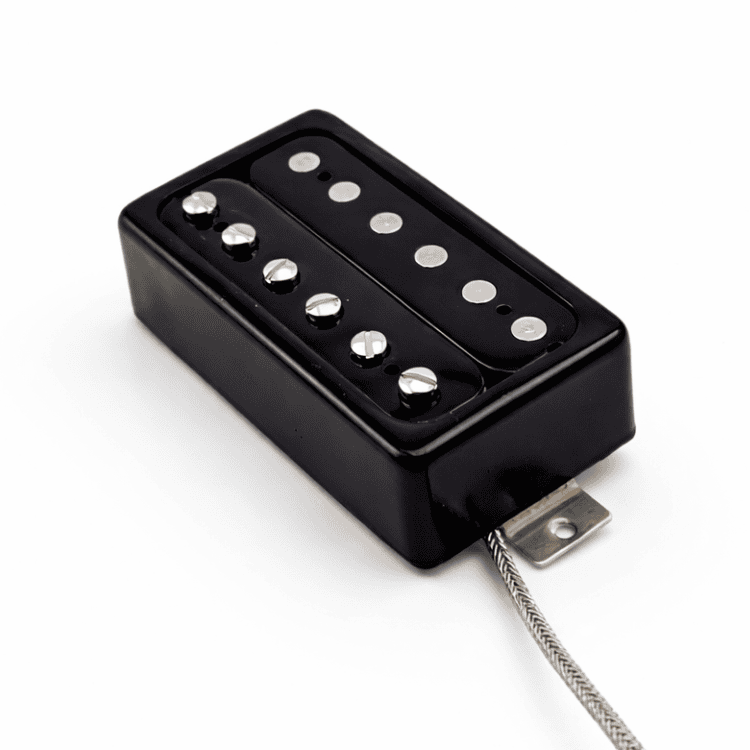

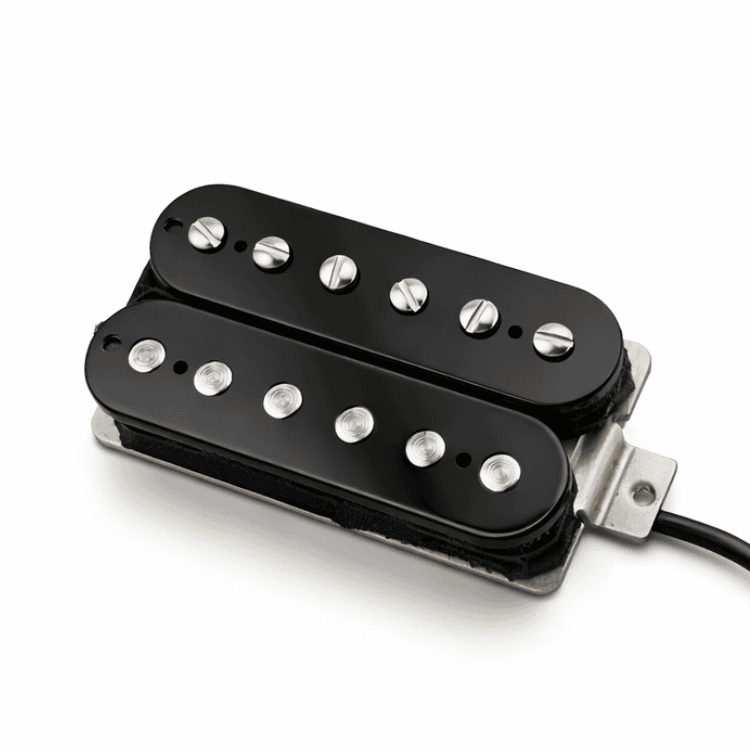

| Cover | Double Black, Zebra, Gold Cover, Chrome Cover, Open Black, Open Gold, Open Chrome, Closed Black, Closed Gold, Closed Chrome |
