B53N Classic
CAD 149.00 CAD 289.00Price range: CAD 149.00 through CAD 289.00
Smooth in the neck. Punchy in the bridge.
The B53N Classic P90 defines the BTone Classic tone — open, articulate, and naturally expressive.
- Description
- Demo Videos
- Live Videos
- Tech Specs
- Reviews
- Dimensions
- Wiring Diagrams
- The Story
- Additional information

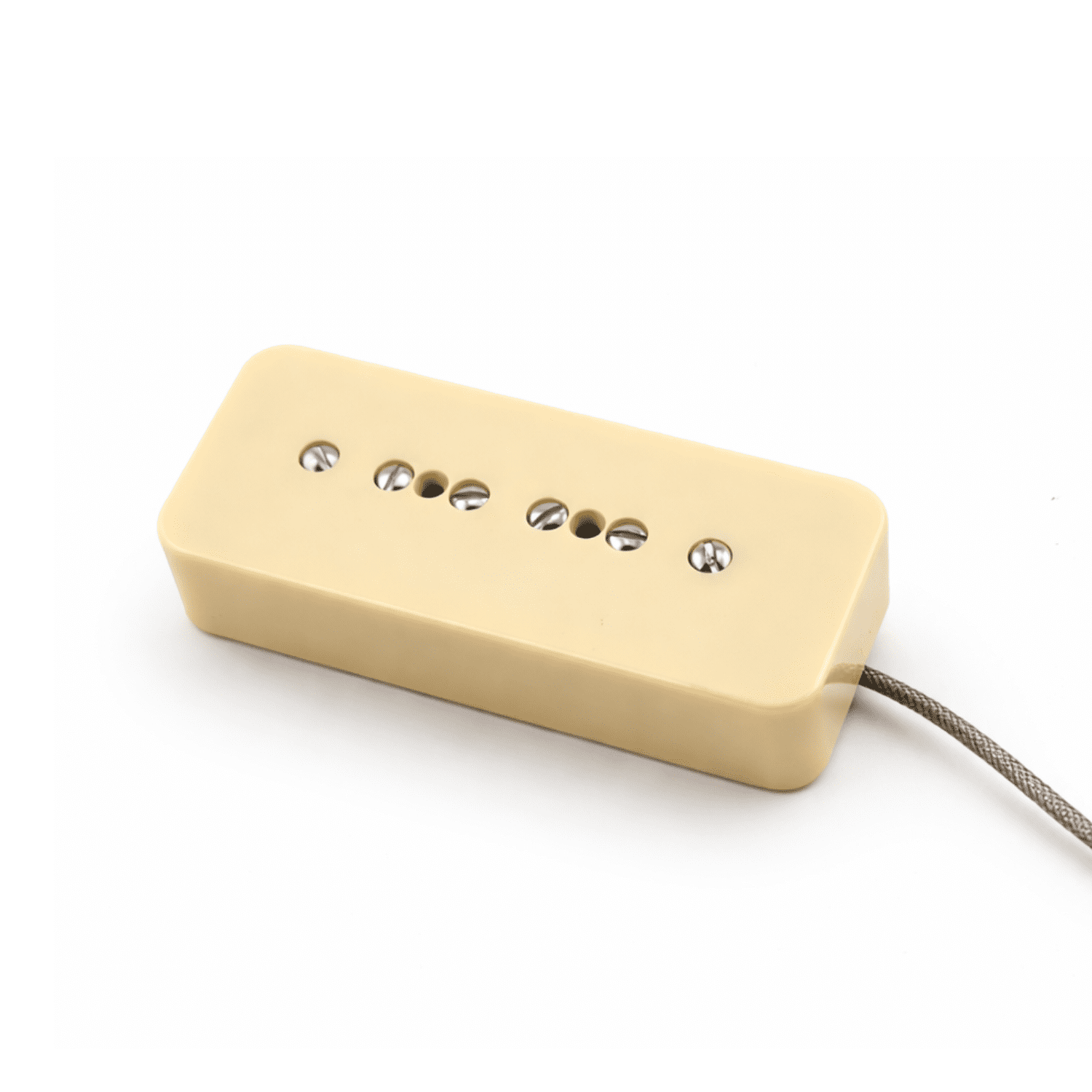

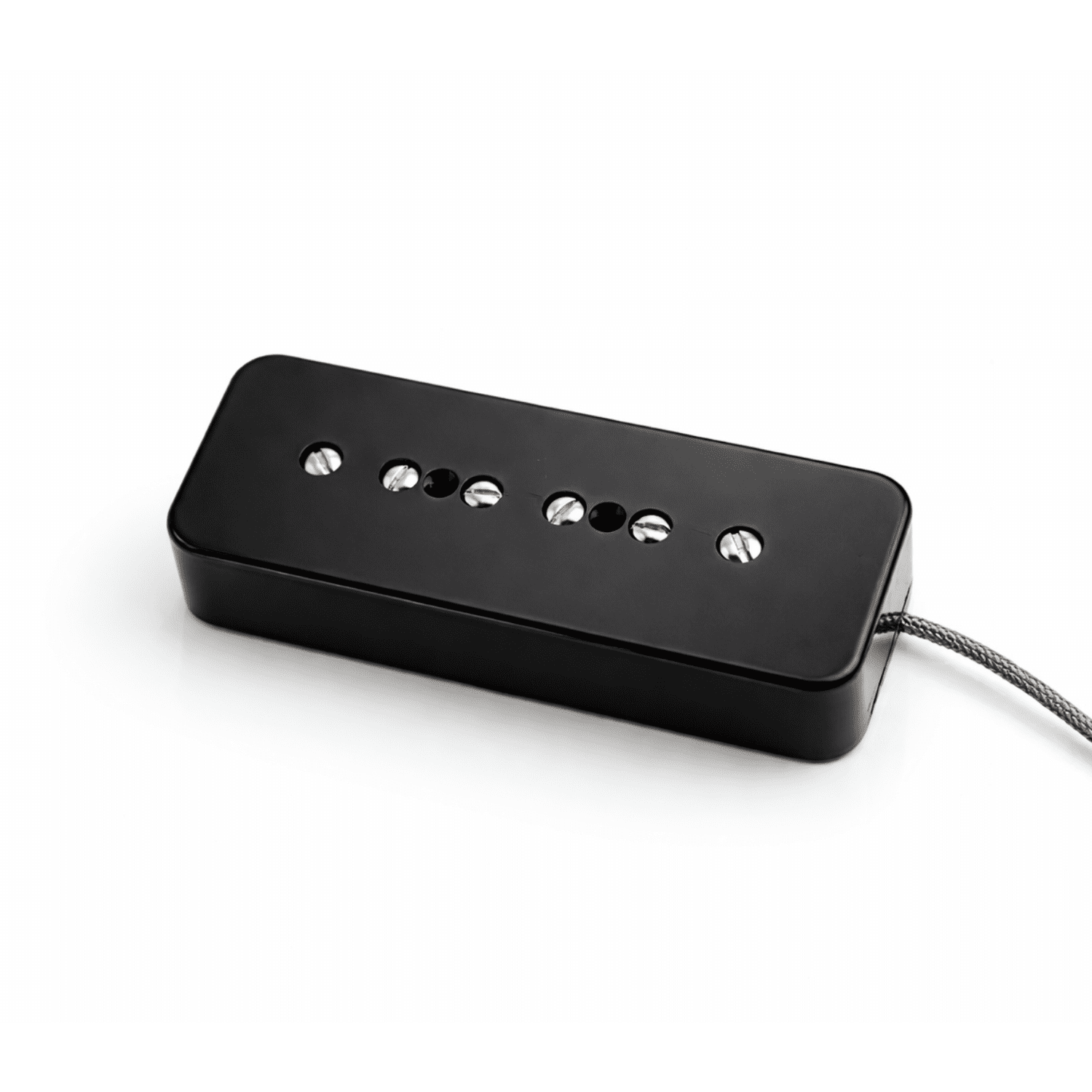

B53N Classic P90 — Articulate, Dynamic, and Full of Character
The B53N Classic P90 is a vintage-voiced single-coil set designed for clarity, punch, and expressive response. Wound for balance between neck and bridge positions, it delivers the unmistakable P90 character — open top end, focused mids, and dynamic touch sensitivity.
From clean articulation to driven grit, the response stays lively, harmonically rich, and naturally responsive.
Classic P90 tone — clear attack, warm body, and expressive midrange bite.
Neck
≈ 7.6 kΩ
Smooth, warm, and articulate.
- Rounded highs with clarity
- Open, vocal midrange
- Full lows without muddiness
Ideal for expressive clean tones, blues phrasing, and dynamic edge-of-breakup response.
Bridge
≈ 7.8 kΩ
Punchy, focused, and dynamically responsive.
- Tight low end with authority
- Strong upper-mid presence
- Crisp attack without harshness
Perfect for classic rock drive, articulate rhythm work, and cutting lead tones.
Who It’s For
✓ Players who want classic single-coil clarity with more body and punch
✓ Great for blues, rock, worship, roots, indie, and studio work
✕ Not ideal for ultra-high-gain modern metal tones
Key Benefits
- Balanced vintage-output P90 character
- Strong midrange presence with open highs
- Excellent touch sensitivity and dynamics
- Clear note separation under drive
- Resonant peak in classic ~3.5–4 kHz range (with standard 300 pF load)
Construction
Hand-wound in Canada with Alnico V magnets, 42 AWG plain-enamel wire, and vintage-style flatwork. Wax-potted for stability while maintaining lively dynamic response.
Nitro dipped and wax-potted for stability.
Configuration
Neck Pickup: North Up • CCW
Bridge Pickup: South Up • CW
Recommended Pots: 500 kΩ (250 kΩ for slightly warmer response)
Tone Cap: 0.022 µF
Includes: Neck and Bridge P90 pickups (sold individually or as a calibrated set)
Demo Videos
Subscribe to the BTone channel
Live Videos
Tech Specs
| SPEC (B53N Classic P90) | VALUE |
|---|---|
| Neck Ohm Reading: | ≈ 7.6 kΩ |
| Bridge Ohm Reading: | ≈ 7.8 kΩ |
| Polarity / Wind (Neck): | North Up / Counter-Clockwise (CCW) |
| Polarity / Wind (Bridge): | South Up / Clockwise (CW) |
| Magnet Type: | Alnico V Bar |
| Wire Type: | 42 AWG Plain-Enamel |
| Pot Value (Recommended): | 500 kΩ Volume / Tone |
| Tone Cap Value: | 0.022 µF (Standard P90 Roll-Off) |
Additional Technical Info 1. Ohm readings may vary slightly due to temperature, multimeter calibration, and material variances. 2. Tone caps for P90s typically range from 0.022 µF to 0.015 µF. Larger values roll off more highs; smaller values retain more top-end clarity. 3. Recommendation: 0.022 µF for a balanced, classic P90 response. 4. Wax potted for stability and feedback resistance.
Reviews
Dimensions
Wiring Diagrams
The Story
The B53N Classic began with Doug Carr — a guitarist deeply rooted in the Vancouver music scene and a player with a lifelong ear for real tone.
As a fan of warmth, feel, and musical honesty, Doug helped inspire one of BTone’s earliest P90 voices.
Doug was the first to receive this set, making it a meaningful part of the BTone story from the start. In BTone naming tradition, it became the B53N Classic — “53” marking Doug’s birth year, 1953, and “Classic” reflecting the timeless BTone voice behind it.
Different format. Same voice.
Built by hand. Played with purpose.
The B53N Classic is honest and full of tone.
| Weight | .35 kg |
|---|---|
| Dimensions | 13 × 13 × 8 cm |
| Pickups | Set of 2 (Neck & Bridge), Neck Pickup Only, Bridge Pickup Only |
| Spacing | 50mm, 52mm, (50mm Neck, 52mm Bridge), (50mm Neck, 50mm Bridge) |
| Cover | Cream, Black |
